Dispermat VE

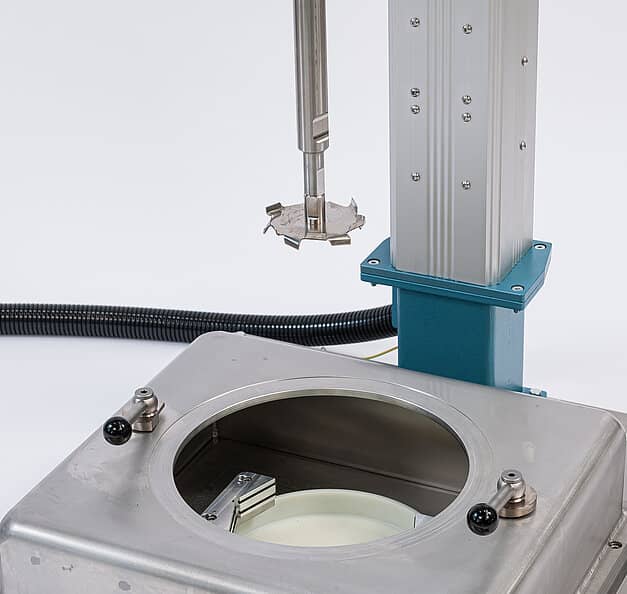

Scraper-Assisted Vacuum Dispersion in various sized containers within a vacuum chamber.

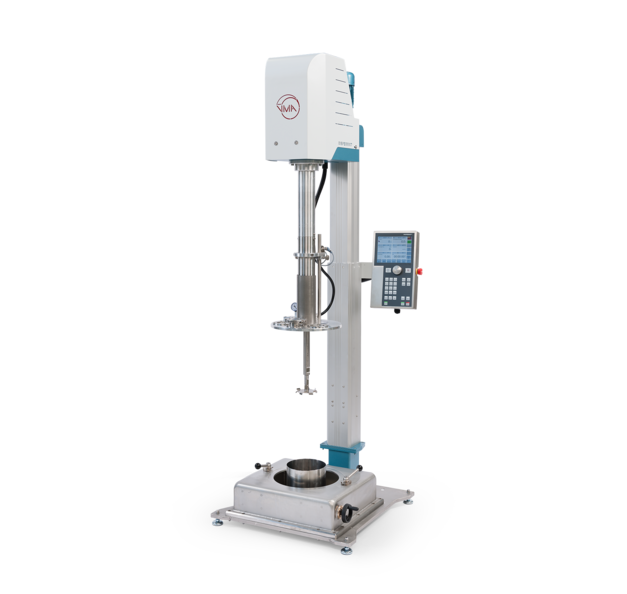

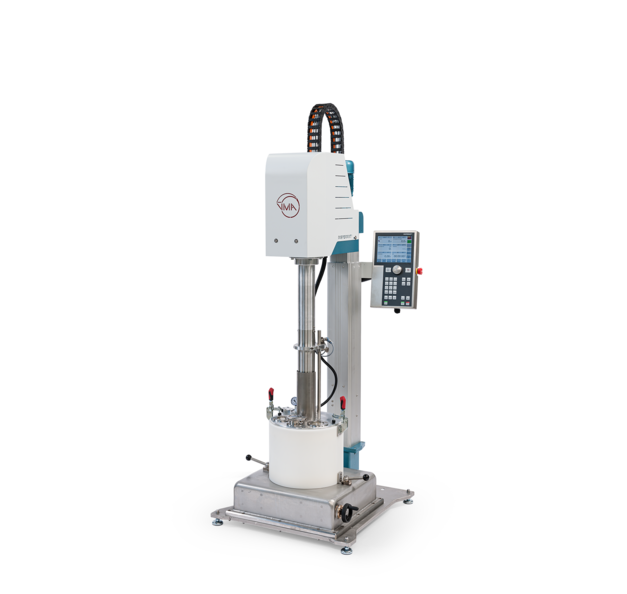

DISPERMAT® VE is a specially designed vacuum dissolver intended for both small-scale laboratory trials and larger pilot-scale applications. What sets DISPERMAT® VE apart is its ability to perform vacuum dispersion in virtually any container, without the need for thick-walled, vacuum-resistant special vessels.

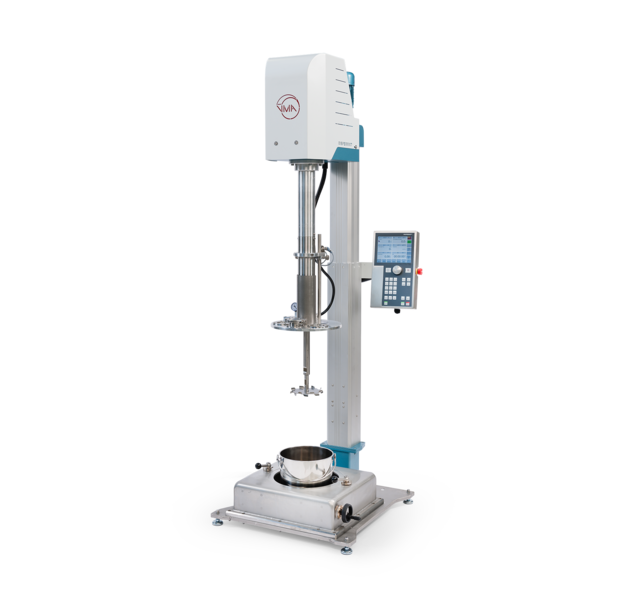

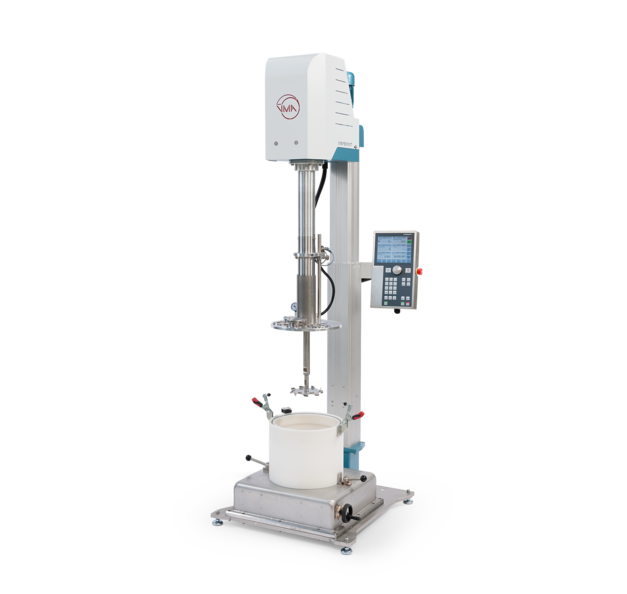

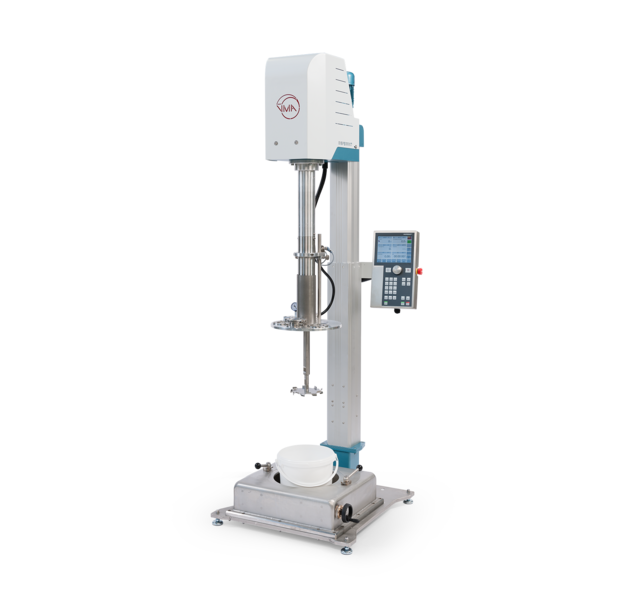

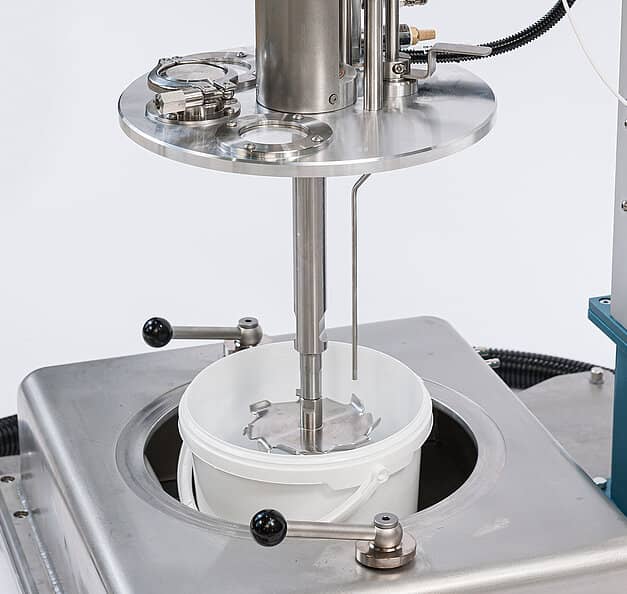

The dispersion process can be carried out in standard single-walled or cooling-jacketed containers, and even in disposable tin paint cans under vacuum conditions. The height of the dispersion disc can be easily adjusted and repositioned during vacuum operation if needed.
Optionally, DISPERMAT® VE can be manufactured in an ATEX-compliant Ex-Proof version for use in hazardous areas. For high-viscosity materials, a scraper system can also be optionally integrated into the DISPERMAT® VE.
VACUUM DISPERSION
DISPERMAT® TECHNOLOGY
Dispersion under vacuum
DISPERWHEEL®
SPEED CONTROL
via rotary pulse encoder
DISPERSAFE®
TÜV CERTIFIED
Safety Module (EN ISO 13849-1)
HEIGHT ADJUSTMENT
ELECTRIC
easy handling, functional design
WORK SAFE
DIRECTIVE 2006/42/EC
integrated safety equipment
C-TECHNOLOGY
PROCESS CONTROL
repeatable dispersion results
SCRAPER OPTION
SCRAPER SYSTEM
For High-Viscosity Products
HIGH VISCOSITY PRODUCTS
DİSPERMAT ® TECHNOLOGY
dispersing high viscosity substances
WINDISP© 7 OPTION
SOFTWARE
documentation, research and QA
MADE IN GERMANY
Since 1972
Quality, Precision, and Robust Technology
| DISPERMAT Type | Power (kW) | Speed (rpm) | Product Volume (liter) |
|---|---|---|---|
| Vacuum dissolver DISPERMAT® VE10 | 2.2 | 0 – 6000 | 0.2 – 7 |
 | |
|---|---|
| DISPERMAT® VE10 Stand H2BF | |
| Dimentions | 81 x 190 x 80 cm |
| Height adjustment | electric |
| Weight | 200 – 250 kg |
C-Technology Control Panel
DISPERWHEEL® Speed Control
Smart control knob for infinitely variable speed adjustment
Large Color Display
Displays speed, torque, power, product temperature, timer, peripheral speed, and tool height
Repeatability
Dispersion method selection for optimal repeatability: constant speed, constant mechanical power input, or temperature-based dispersion
Data Logging
Graphical recording of process parameters
Parameter Deactivation
Ability to deactivate functions for temperature, speed, torque, and power
Database
Up to 100 pre-set configurations for H1, H2, speed, time, shutdown parameters, ramp function, etc.
Height Adjustment
Control of the drive motor’s height via solvent-resistant foil keyboard
DISPERSAFE®
TÜV-certified safety module for using containers of varying sizes without circuit breakers or mechanical interlocks
Height Measurement
Adjustable working range for different container sizes
Connectivity
USB
Windisp 7 ©
Data interface for Windisp © 7 software for documentation, analysis, R&D, and quality control applications
DISPERMAT® VE Accessories
Compatible Dispersion Containers and Dissolver Discs
Table of recommended dispersion containers and matching dissolver discs according to the speed and motor power of your DISPERMAT® system.
| DISPERMAT® | Dispersion Vessels | Dissolver Disks |
|---|---|---|
| Vacuum dissolver DISPERMAT® VE10 | 0.5 ‒ 10 liter | Ø = 50 – 125 mm |
